DETAILS

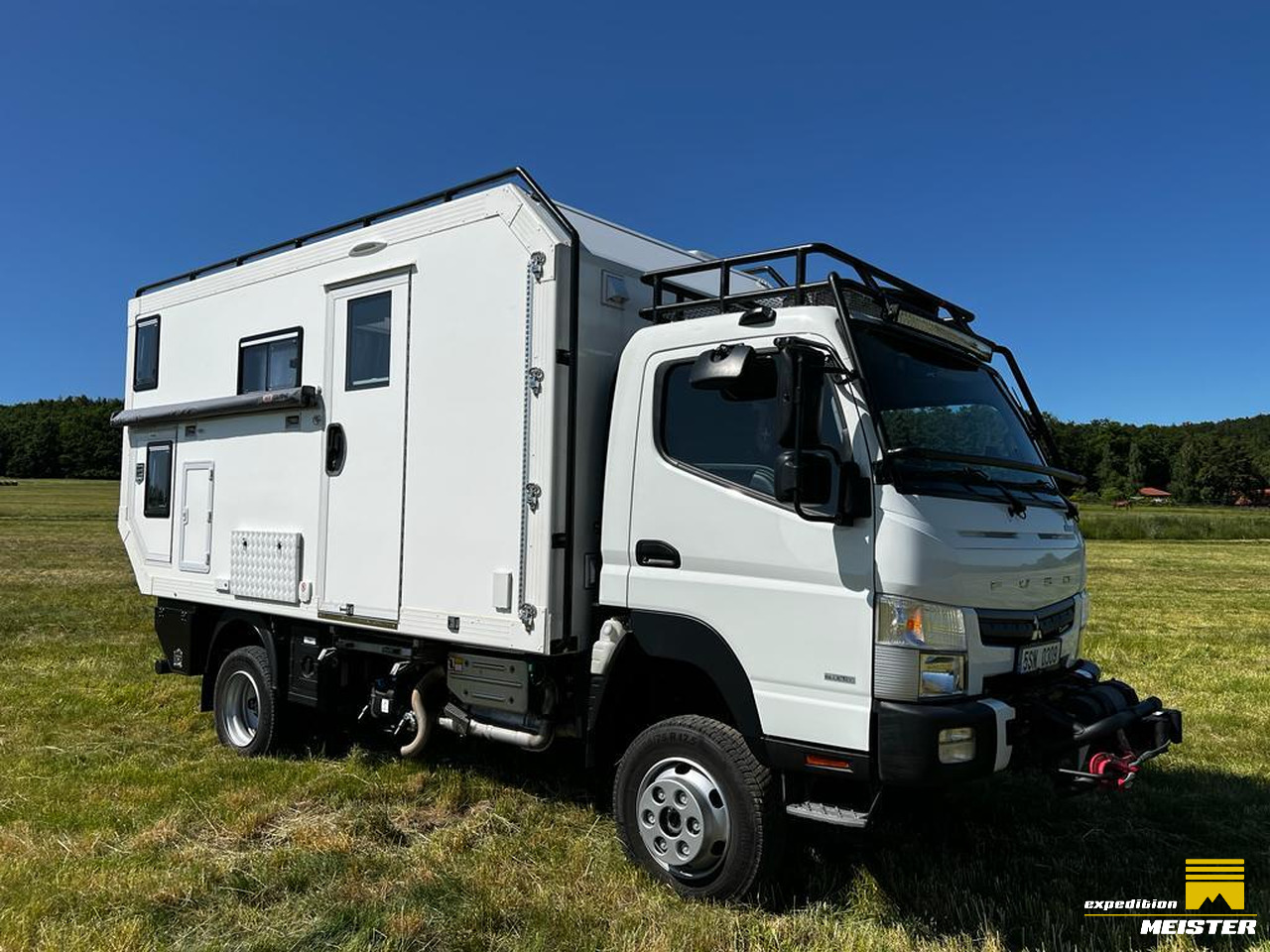

Mitsubishi Fuso Canter 4×4, 20 000km, 2021 (2022)
• Length 7.22 m
• Width 2.20m
• Height 3.28m
• Curb weight 5870 kg
• Perm. Total weight 6500 kg
• Wheelbase 3415mm
• Engine 129 KW / 175 HP Euro 6
• Tires Continental 205 / 75 R17.5
• 5-speed manual gearbox
• 4WD
• Differential locks in rear axle (SELF-LOCKING)
• Front-rear axle spring suspension
• Fuel tank with. 250 liters of diesel
• Additional LED headlights 360°

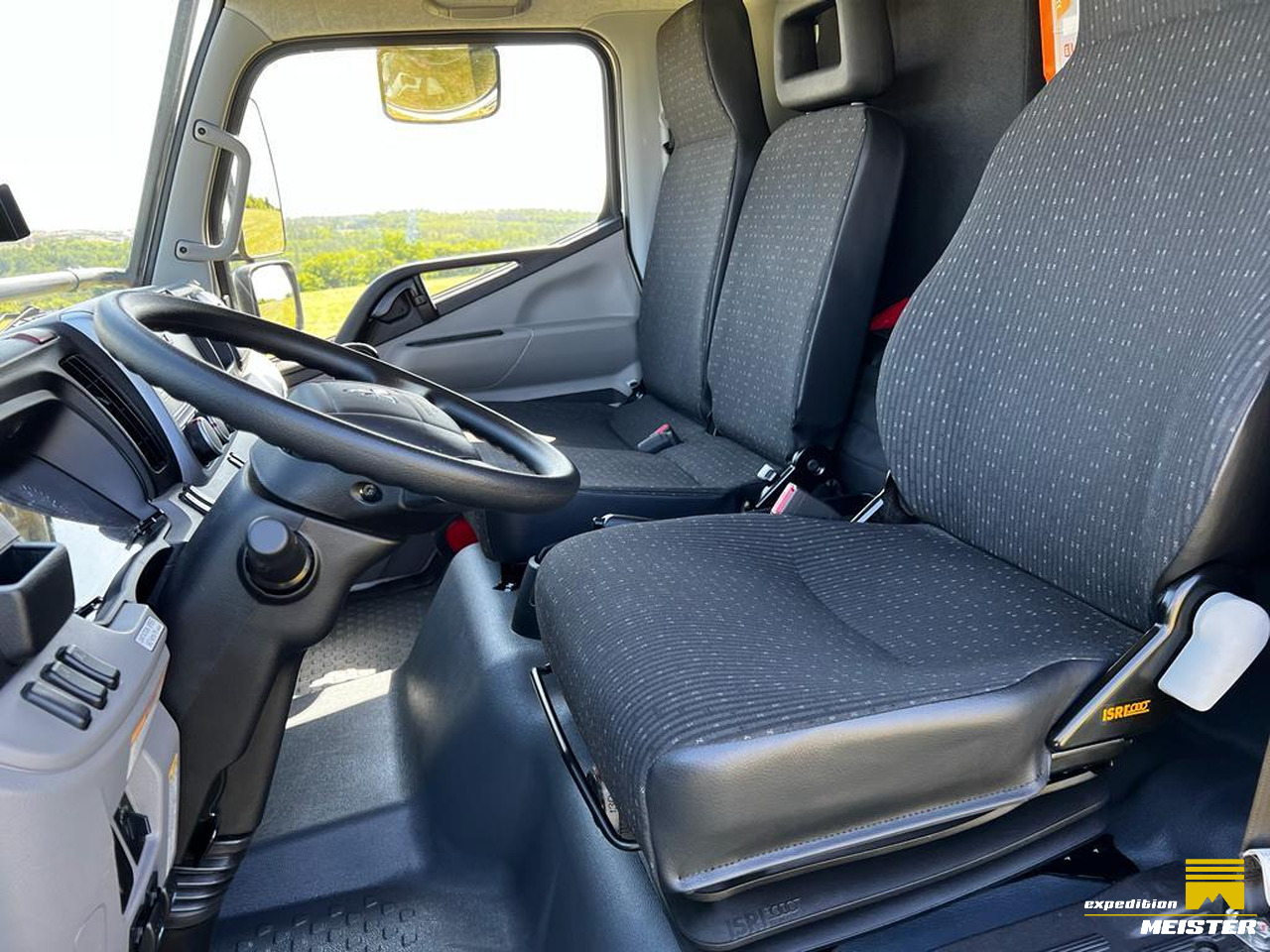

• 3 seats in the cab
• 2 additional seats in the box body

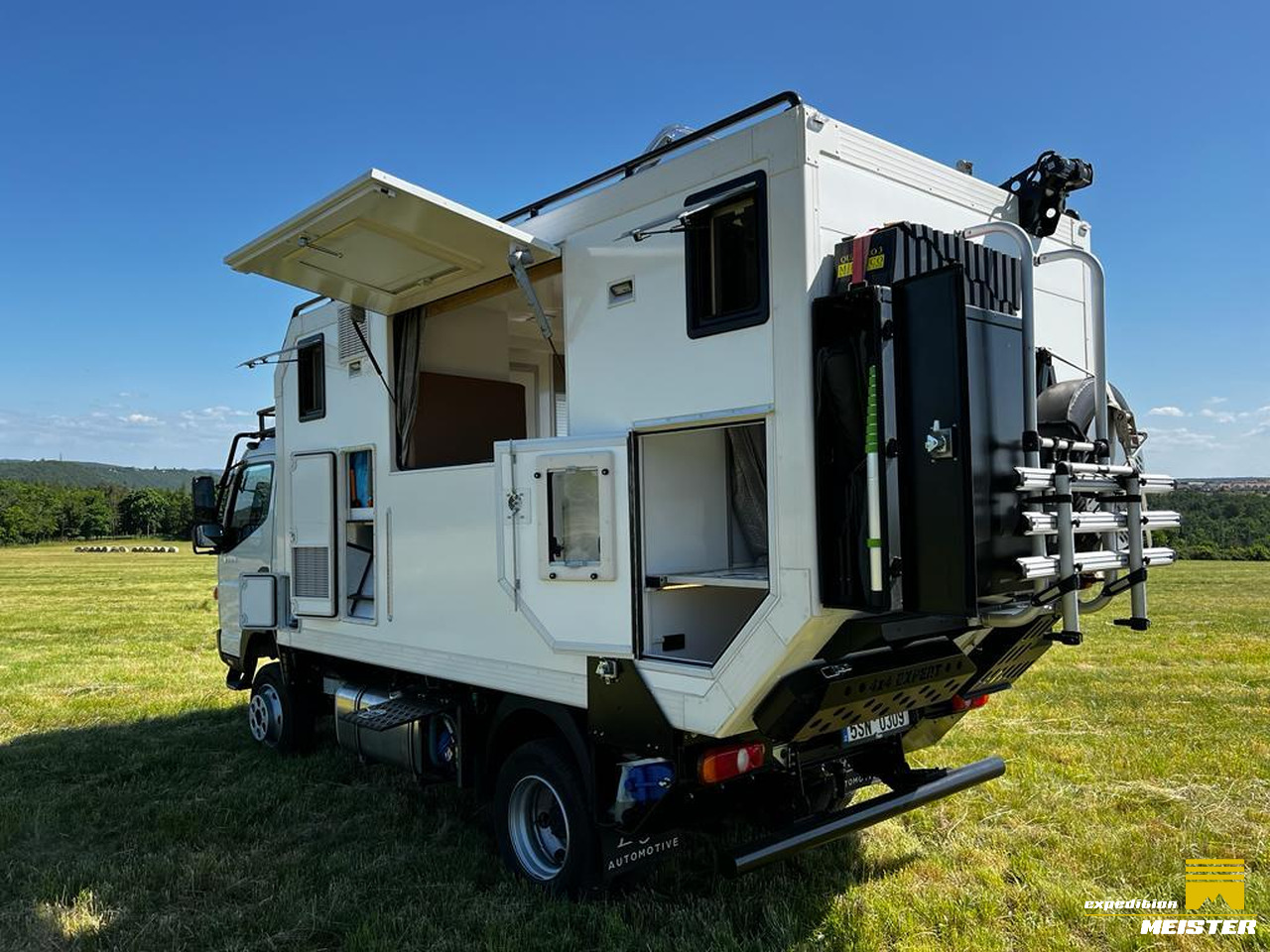

CONSTRUCTION (8/2022)

external dimensions
• Length 4500mm, width 2200mm, height 2200mm

internal dimensions
• Length 4400mm, width 2100mm, height 2000mm
• Bearing with rubber bearings for tension-free connection between body and chassis frame
• GRP sandwich element with a wall thickness of 50 mm
• Upper layer 2 mm outside, 2 mm inside reinforced with fabric. Aluminum reinforced sandwich panel
• Circumferential aluminum frame with inserted GRP sandwich panels
• Aluminum frame laminated into the base plate
• large passage into the driver's cab
• Doors and flaps with a solid three-point locking system, locks keyed alike
• Windows with double glazing (outbound) with integrated mosquito protection and blackout
• Roof hatch 350 x 520 mm with integrated mosquito protection

INTERIOR CONSTRUCTION
• Furniture made of plywood panels with laminate (HPL) surface
• Furniture fronts in walnut veneer
• Furniture fittings made of nickel-plated brass or stainless steel, adjustable in three dimensions
• Compression closures
• Vinyl flooring

Bed
• 2x rear bunk bed 2000 x 900 mm
• 1x 1850x1100mm

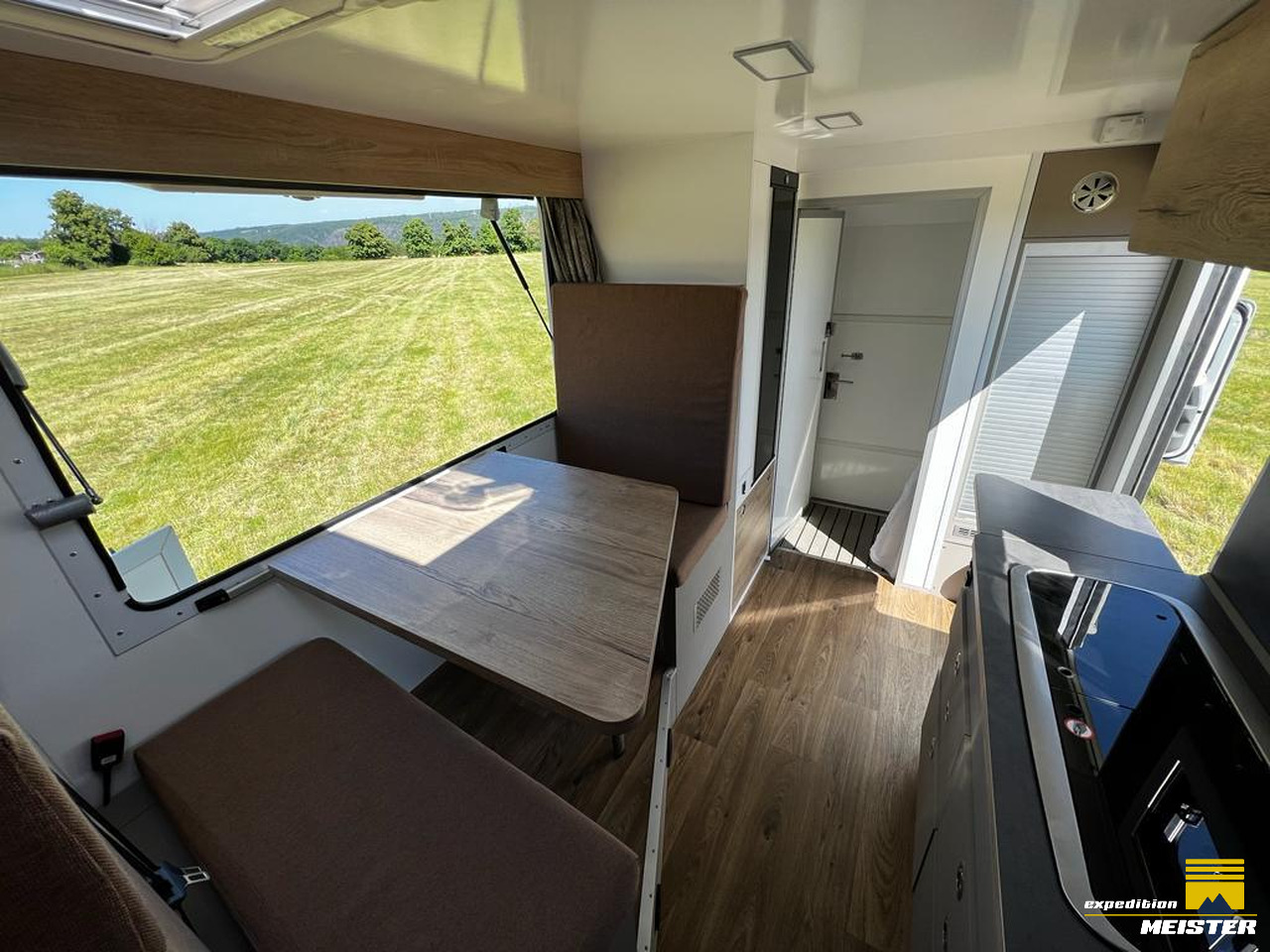

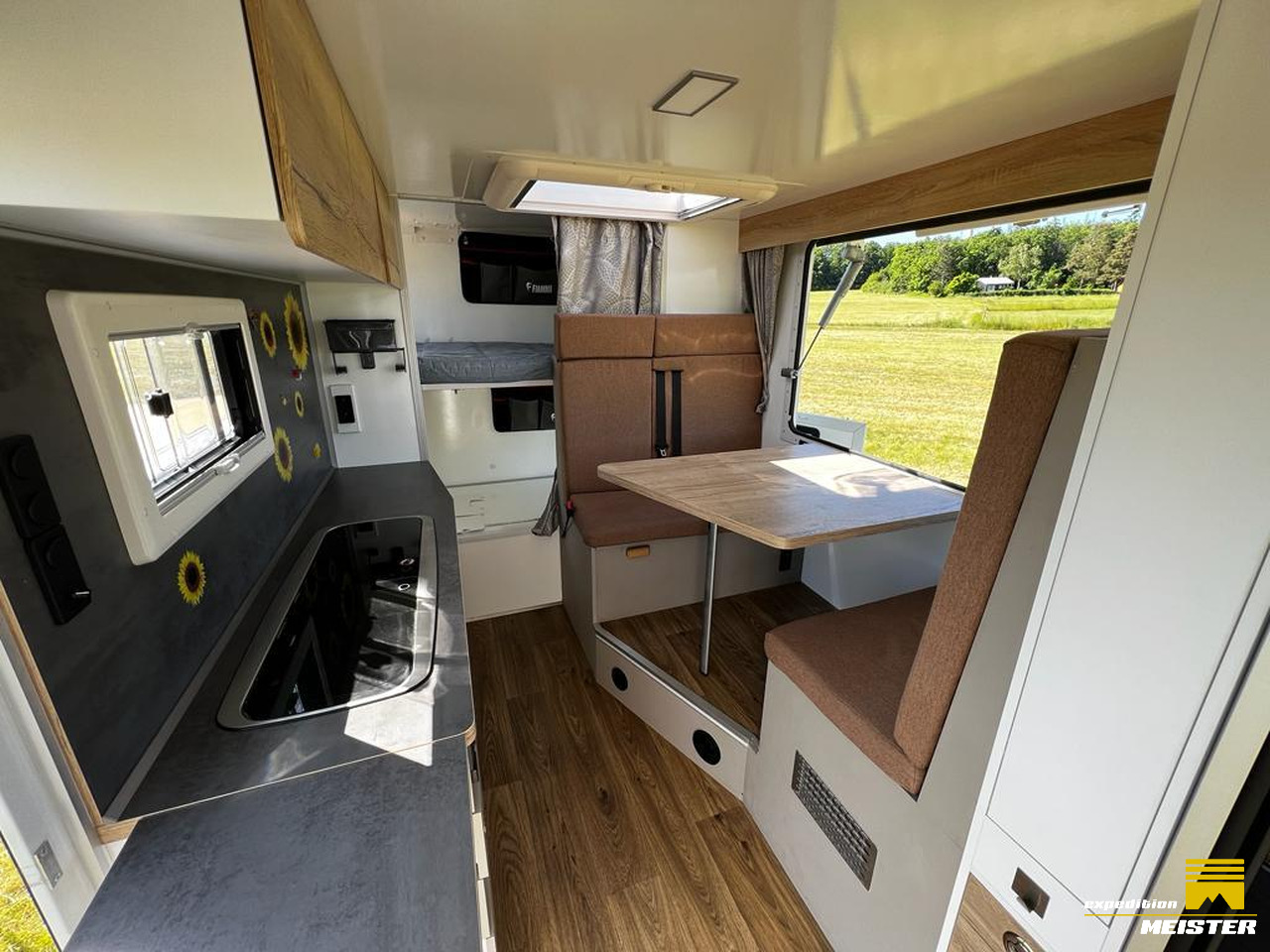

seating group
• Seating group can be converted into a bed 1800 x 1100/800 mm
• Height-adjustable table frame with a walnut veneer wooden top
• Upholstery fabric felt

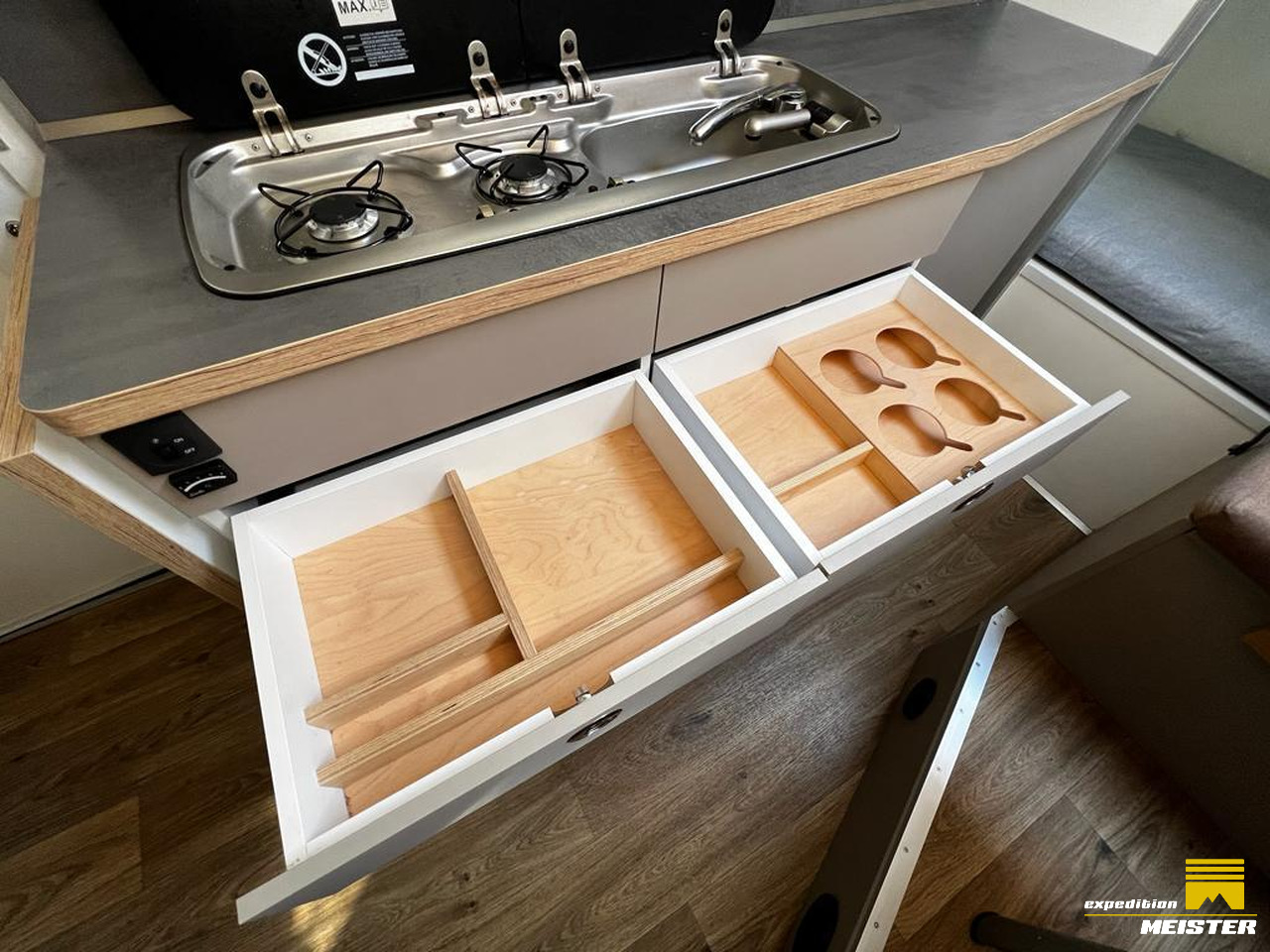

Kitchen
• Corina worktop with flush-mounted sink
• Gas hob with 2 burners

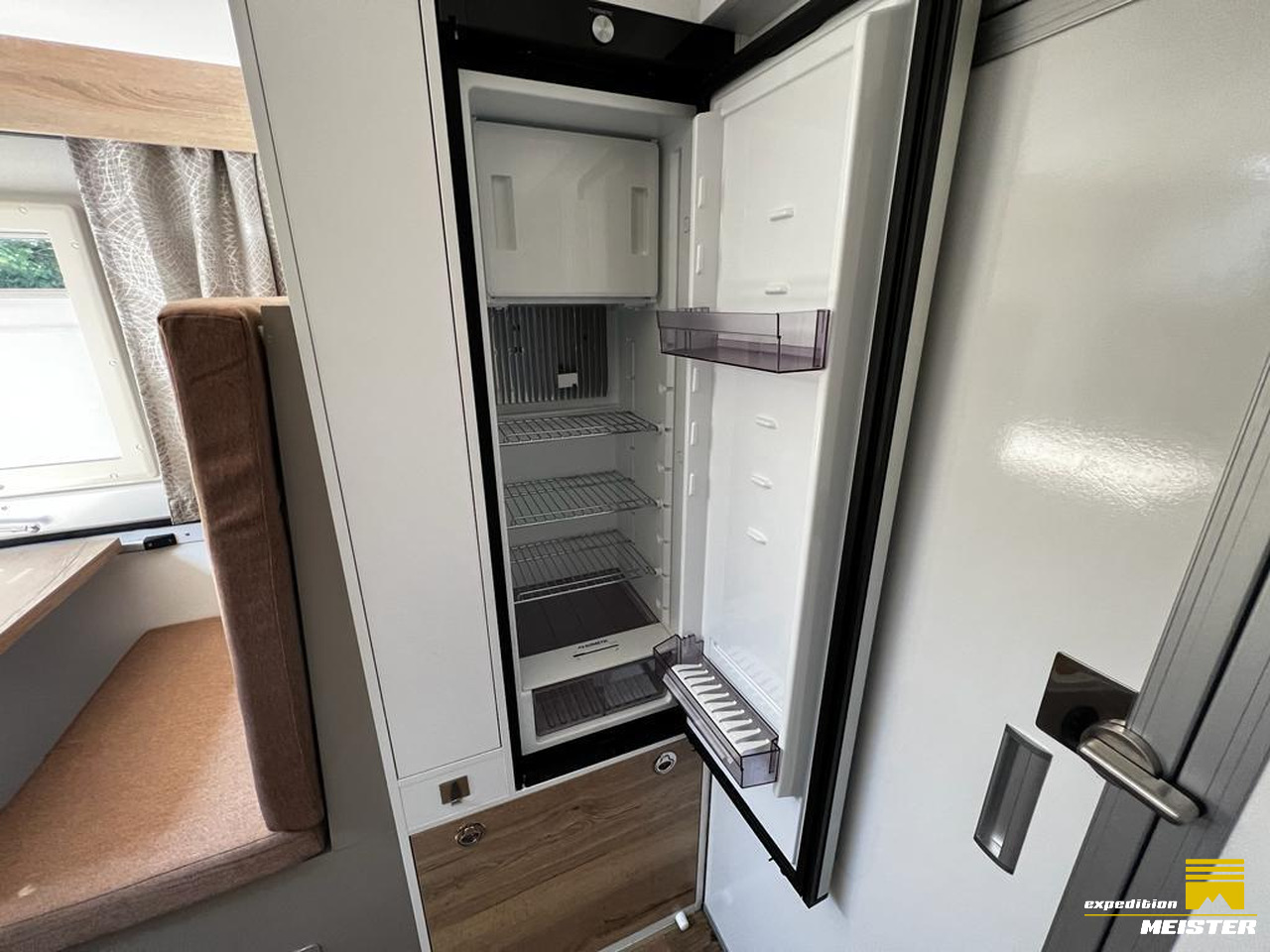

• Absorption fridge/freezer combination (gas/230/12) 90+7.5 litres
• Base cabinets with drawers, ball bearings with self-closing

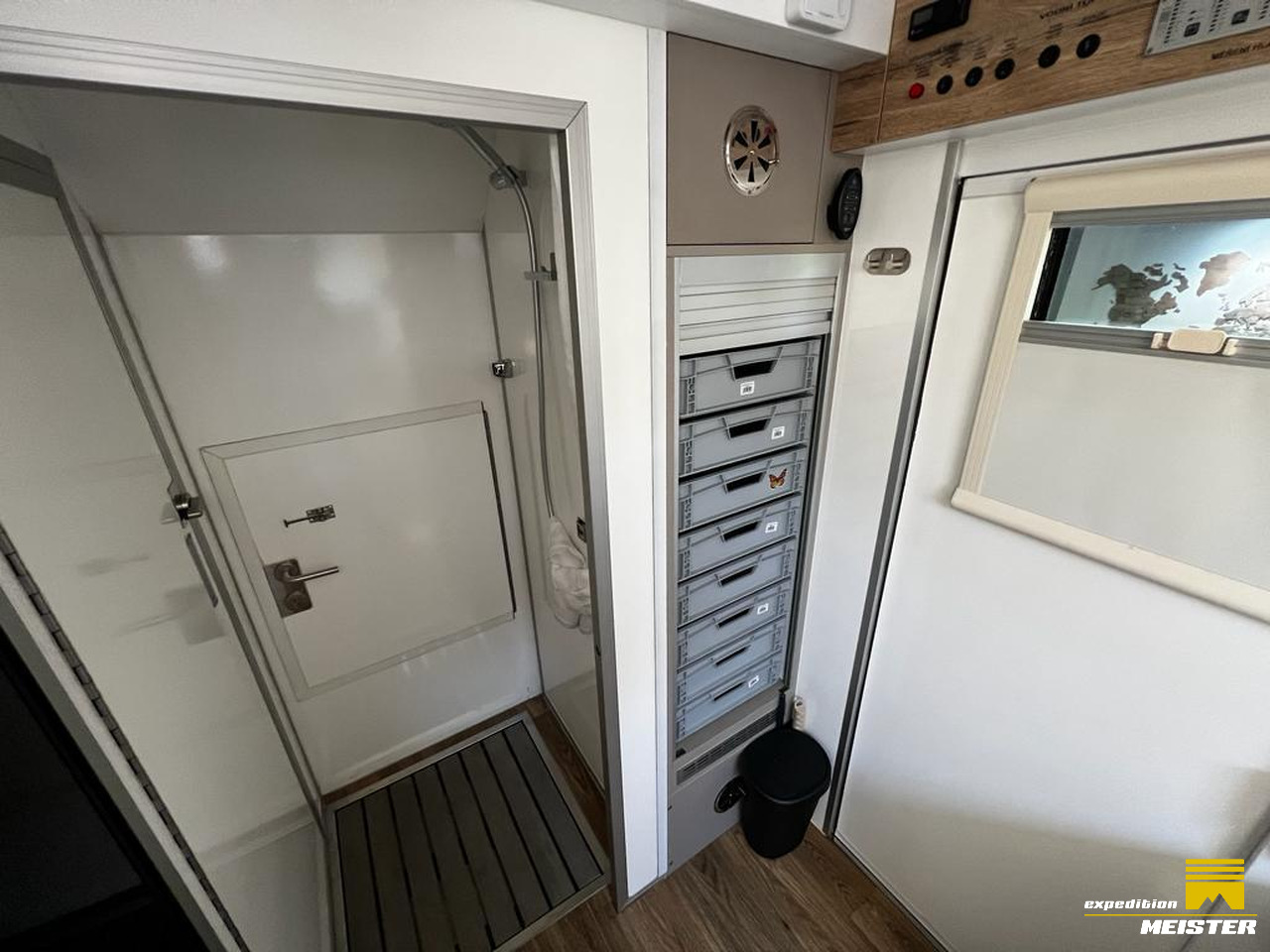

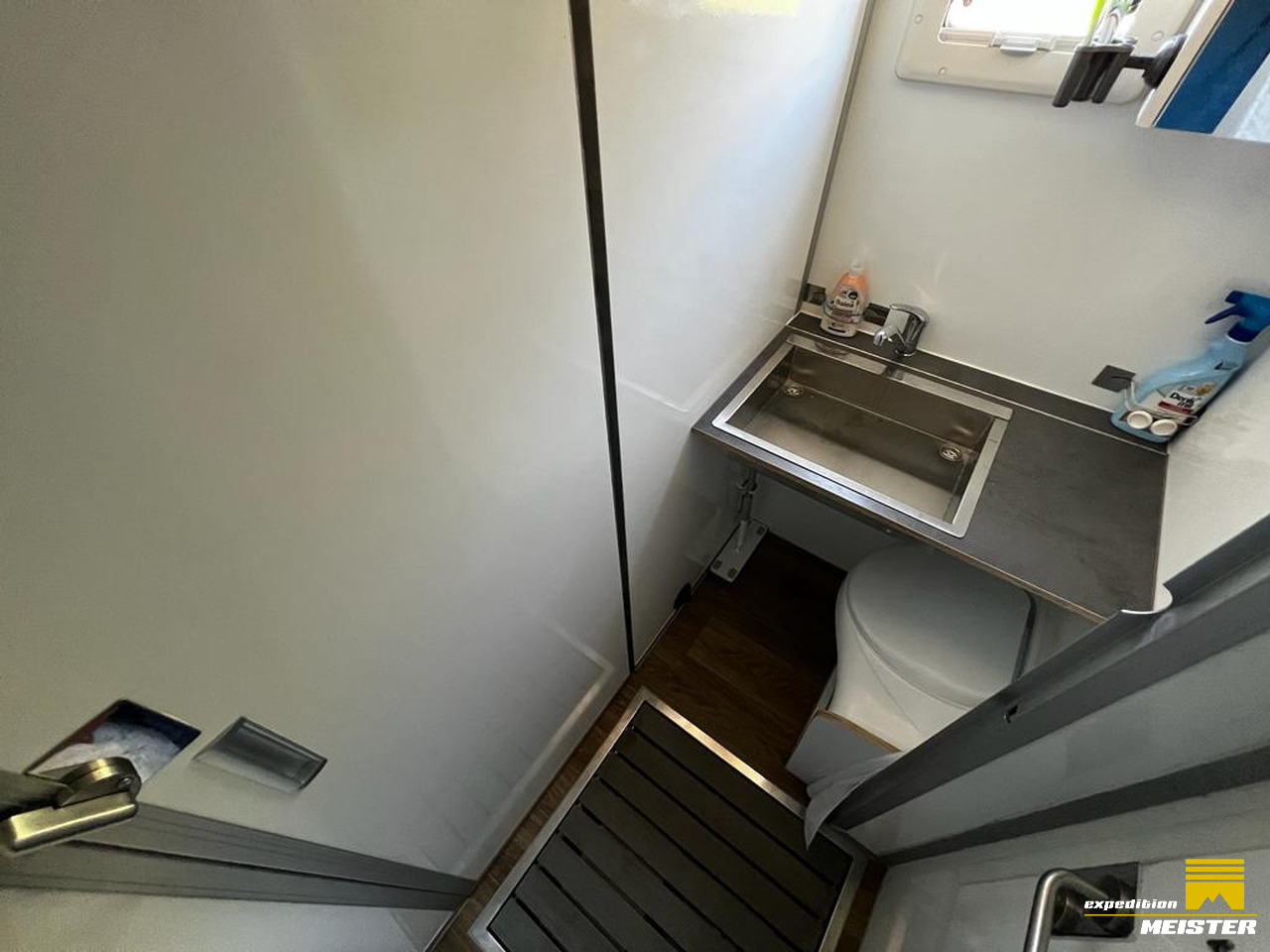

sanitary room
• Vanity
• Mirrored wall cabinet
• Shower tray
• Cassette toilet

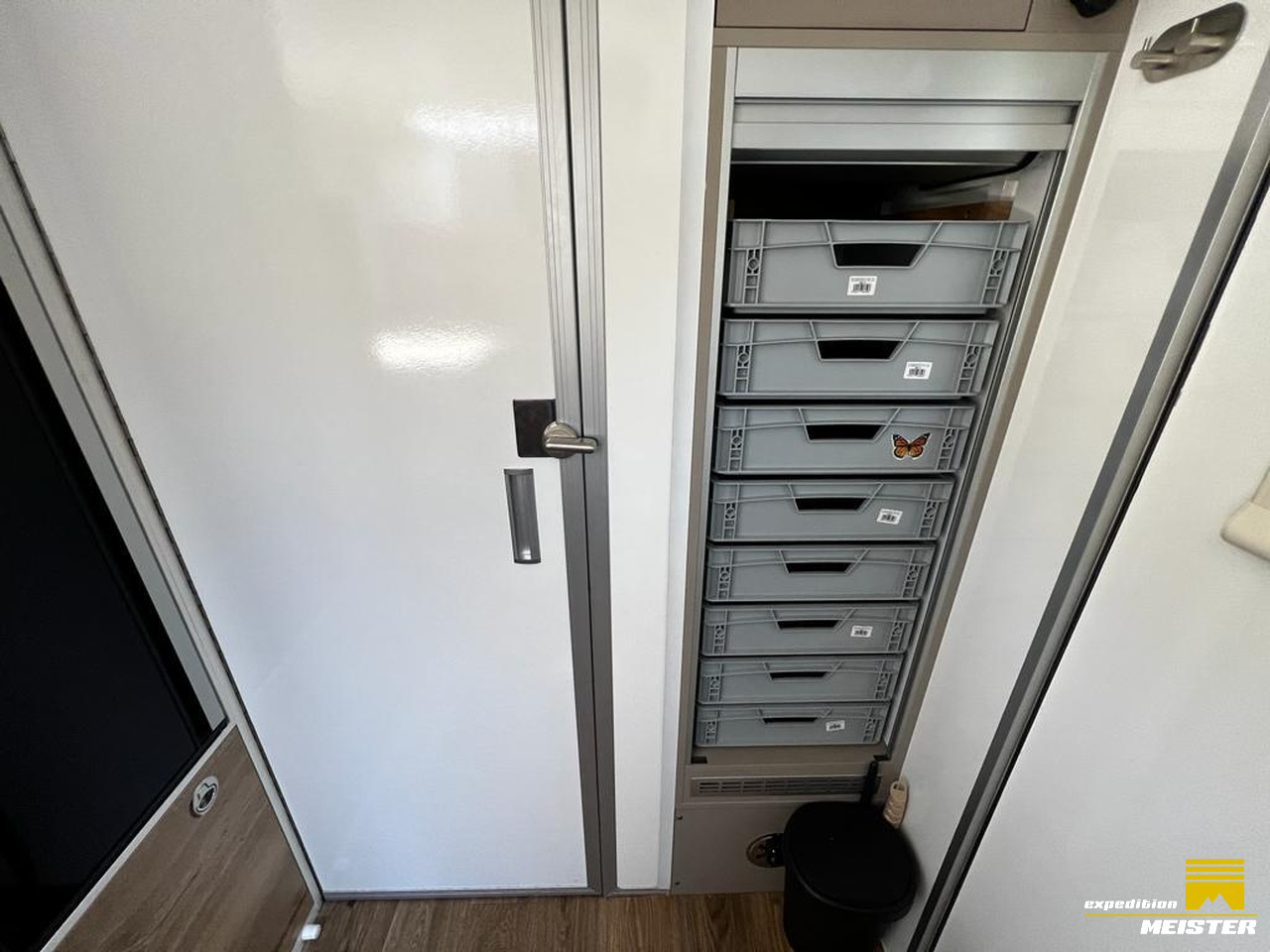

storage spaces
• Wardrobe with height-adjustable shelves
• Cloakroom with shoe cabinet

TECHNICAL EQUIPMENT

power supply
• Control panel for monitoring the power supply and the individual levels
• Protection of the individual circuits via thermal circuit breakers with LED function display
• Mastervolt bus system
• Independent power supply for the superstructure with a lithium-ion battery
o Battery capacity 24/400 AH with Battery Protect BP-220 Victron
• MassCombi inverter/charger 24V, inverter 230V/1200W, Victron Multiplus 1200VA, charger 16A
• Charger for an input voltage of 90 – 265 volts, charging capacity 30 A, Phoenix
• Solar modules Victron MPPT 100/50, power 3x 175 W, Victron
• Orion-Tr Smart 12/12-30A charger, Victron
• Lighting via Power LED, dimmable
water supply
o 227 liter water tank in box body
o 3x 20 liters with drinking water under the kitchen
• 25 liter hot water boiler
• 75 liter waste water tank
• Water filter
• Outdoor shower
• All water installations are laid frost-proof outside
heating system
• 4 KW diesel air heater AirTronic D4/12
• 5 KW diesel hot water heater Hydronic S3 D5 with changer 4kW
• 25 liter hot water boiler
gas supply
• 50kg gas tank
• External gas connection

Miscellaneous

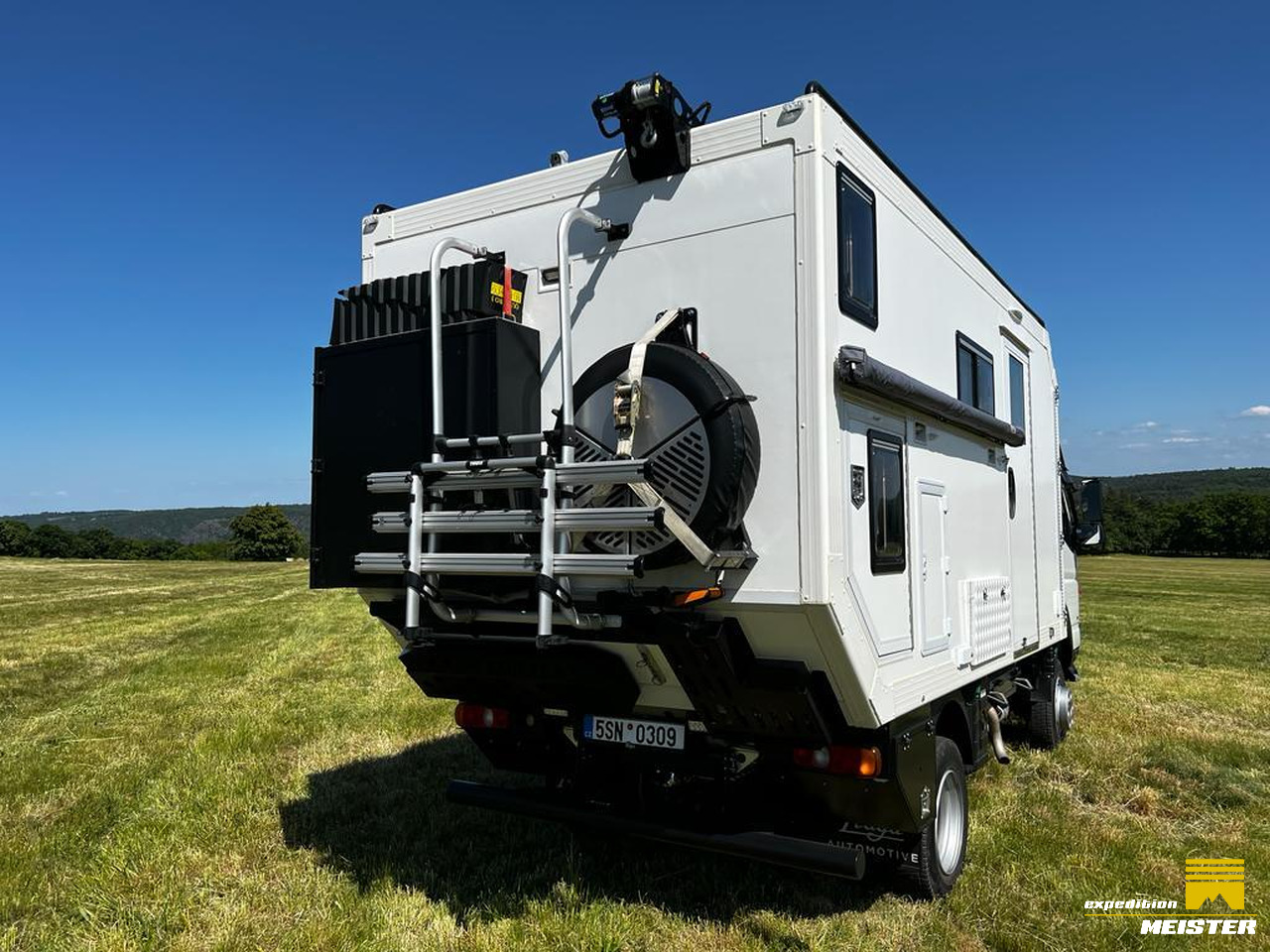

• Rear bike rack
• Rear box for transporting large goods
• Outdoor storage boxes. 4 pieces
• Air compressor with tank and distribution for each wheel
• Ramsey RE12000 winch
• Rear spare wheel winch
• Steel frame on body and cab

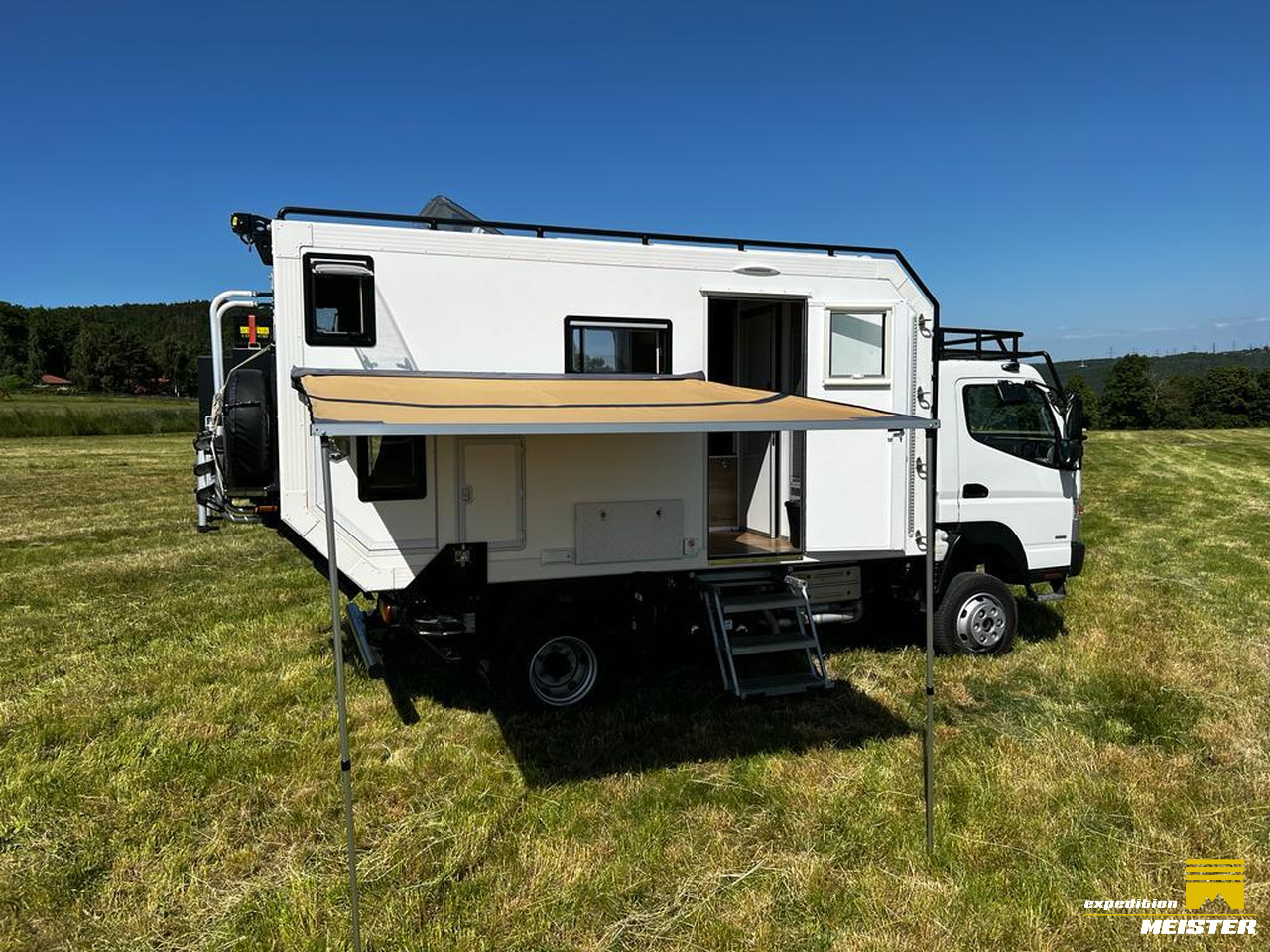

• Awning ARB
• Outdoor shower
• Holders for Maxrtax
• Goods rails
• All outlets under the car are isolated with rubber insulation and the waste water is automatically heated

Price: €199900 with VAT, €165500 (Net), VAT 21%
